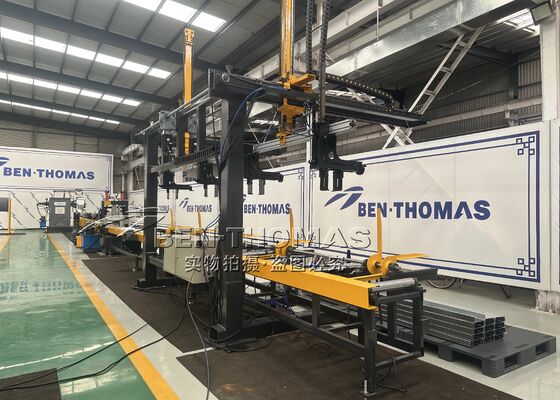

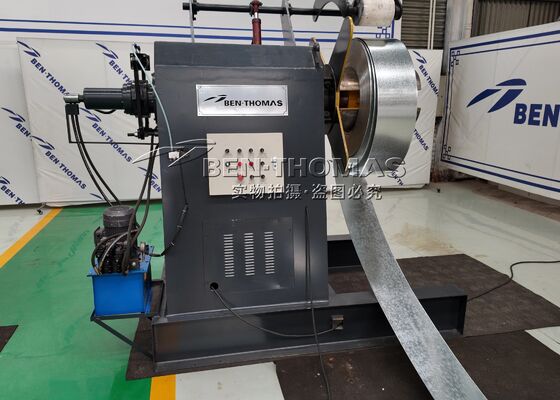

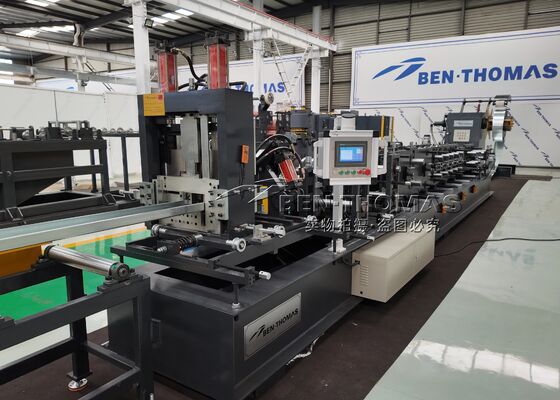

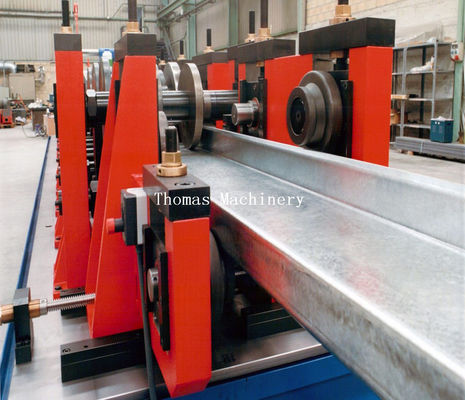

Z Purlin Roll Forming Machine

Z Purlin Roll Forming Machine

    • Z Purlin Roll Forming Machine
    • Z Purlin Roll Forming Machine
    • Z Purlin Roll Forming Machine
    • Z Purlin Roll Forming Machine
    • Z Purlin Roll Forming Machine
  • Z Purlin Roll Forming Machine

    Product Details:

    Place of Origin: China
    Brand Name: Thomas
    Certification: CE,ISO
    Model Number: T-Z2634

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 50000 USD - 80000 USD
    Packaging Details: Standard packing or according to customers requirement
    Delivery Time: 50 working days
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Voltage: 380V 50Hz 3phases After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Condition: New Weight: 12T
    Dimension(l*w*h): 11M*1.9M*1.5M Use: Purlin
    Tile Type: Steel Warranty: 12 Months
    Color: Customers' Requires Control System: PLC
    Type: Steel Frame & Purlin Machine Production Capacity: 8-12m/min

    Contact Details:

    Contact Person : Ms. Elva

    Business Phone : 008618931757891

    WhatsApp : 008618931757891

    Skype : taiyumachine@hotmail.com

    WeChat : 8618931757891

    Email : elva@tgrfm.cn



    Machine Details:
    1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
    2. Working Speed: 12-15 meters / min
    3. Forming Steps: 19 stations, drive by gear boxes
    4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
    5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
    6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
    7. Main Power with reducer: 22KW WH Chinese Famous
    8. Cutting: Hydraulic Cutting Cr12mov
    9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
    10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
    11. The whole machine is controlled by industry computer-PLC.
    12 PLC--Panasonic, Japan English and Chinese Language
    13 Touch Screen--Panasonic Japan
    14 Encoder--Omron, Japan
