corrugated steel culvert pipe machine

corrugated steel culvert pipe machine

    • corrugated steel culvert pipe machine
    • corrugated steel culvert pipe machine
    • corrugated steel culvert pipe machine
    • corrugated steel culvert pipe machine
  • corrugated steel culvert pipe machine

    Product Details:

    Place of Origin: China
    Brand Name: Thomas
    Certification: CE,ISO
    Model Number: T-P8437

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 50000 USD - 80000 USD
    Packaging Details: Standard packing or according to customers requirement
    Delivery Time: 50 working days
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Voltage: 380V 50Hz 3phases Weight: 15T
    Condition: New Dimension(l*w*h): 7500*1700*1600Mm
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Certification: CE/ISO9001
    Warranty: 12months Color: Customized
    Control System: PLC

    Contact: Elise

    Tel / Whatsapp: +86-15232975068

    Skype : babygirlelise2

    Email : elise@tgrfm.cn

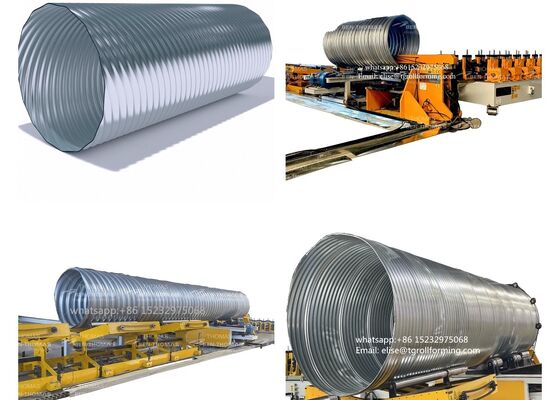

    This machine is special for producing large diameter spiral steel corrugated pipes used as supports for culverts, tunnels and columns.

    This machine is PLC control, full automatic.



    Main technical data of large diameter corrugated steel pipe machine for culverts & tunnels:

    corrugated steel culvert pipe machine





    Item Data
    Diameter of tube 800~6000mm
    Thickness of strip 2.0~3.0mm carbon steel or galvanized steel
    Width of strip 300mm
    Decoiler Hydraulic expansion
    Capacity of decoiler Max. 5000kg
    Lock seam type of steel pipe Spiral seam lock
    Corrugation size Width 76mm, height 25mm
    Working speed 0~20m/min continuously adjustable
    Cutting method Plasma cutting
    Machine weight About 10 tons

    Machine size

    (L x W x H)

    Main machine: 4500 x 1600 x 1400mm
    Decoiler: 2500 x 1200 x 2000mm
    Unloading rack: 2000 x 1600 x 1400mm
    Total power 44.5KW
    Control type PLC + HMI
