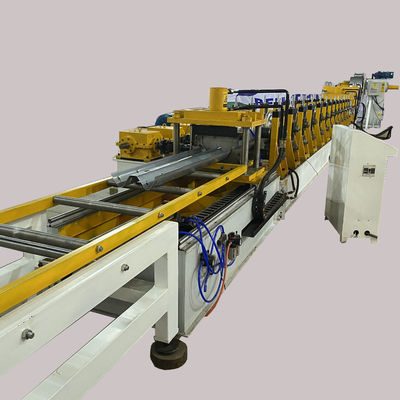

Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line

Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line

    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
    • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line
  • Highway guardrail making machine/Highway guardrail equipment /Highway guardrail production line

    Product Details:

    Place of Origin: China
    Brand Name: Thomas
    Certification: CE,ISO
    Model Number: T-H5233

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 50000 USD - 80000 USD
    Packaging Details: Standard packing or according to customers requirement
    Delivery Time: 50 working days
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50Hz 3phases
    Condition: New Use: Highway Guardrail
    Weight: 25t Tile Type: Steel,Galvanized Sheet

    Contact Details:

    Contact Person : Ms. Elise

    WhatsApp : +8615232975068

    Skype : babygirlelise2

    WeChat : 1976966546

    Email : elise@tgrfm.cn



    (1) 10T hydraulic decoiler

    • Coil weight (max.) : 10000 kg
    • Coil dia. (Max): Φ508×1500 mm
    • Hydraulic oil cylinder dia : 120 mm, Working pressure : 16 MPa
    • Coil Width (Max.) : 800mm
    • Working speed : 0-25 m/min
    • Power :5.5 kW

    (2) Pre-cutting

    • Base on customer request, machine should be have pre-cutter for change coil when in working
    • Cutting by hydraulic
    • Hydraulic power: 22KW
    • Cutting control by switch

    (3) Feeding & Leveling

    • Feeding the sheet to the guide roller (it is adjustable by right and left).
    • Feeding roller: diameter is ¢180 mm, material is 40Cr steel, HRC48-52.°
    • Leveling roller: upper is 3 rollers, down is 4 rollers (total is 7 stations), material is 40Cr steel, HRC48-52°
    • diameter of leveling roller: 180 mm
    • power:7.5KW brake motor

    (4) Punching

    • Using hydraulic punching
    • Oil cylinder diameter: ¢180 mm
    • Working pressure: 30 MPa
    • Mould material: Cr12, quenched 58°-62°
    • Hydraulic power: 22 kW
    • Punching station: 4 stations
    • The first big punching adopt double cylinders, the other three punching adopt single cylinder

    (5) Cutting

    • Hydraulic pre-cutting
    • Knife material: Cr12,quenched 58°-62°
    • Oil cylinder dia:250mm
    • Working pressure:60mpa
    • Working journey: 80mm
    • Hydraulic power: 22kw​

    (7) Conveyor table

    • Length: about 6 meters
    • Drive by motor: 3KW
    • In the two side of the conveyor have guide rollers to make sure the sheet can moving straight
    • In the surface of the conveyor table is by rollers, diameter of roller is in 90mm
    • Material of roller: 45# steel, surface with chrome.

    (8) Roll forming

    • main motor power: 55kw
    • station: adopt cast iron HT50
    • Decelerating motor: BWD14-43-55KW, made in Shanghai or Changzhou
    • Transmission: by gear box: 200*500(outside is cast iron, surface needed polish and paint. Inside is 60# forge and press metal)
    • Main shaft dia: ¢100mm material: 45﹟forge steel
    • Roller material: GCR15 quenched 58°-62°, black oxide coating
    • Roll station:20stations (include feeding two feeding stations)
    • Roller thickness: 2-3.2mm
    • Timing by transducer:5m--12m/min(not including punching)
