Place of Origin: | China |
Brand Name: | Thomas |
Certification: | CE,ISO |
Model Number: | T-S8365 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 50000 USD - 80000 USD |
Packaging Details: | Standard packing or according to customers requirement |
Delivery Time: | 50 working days |
Supply Ability: | 10 sets per month |
Voltage: | 380V 50Hz 3phases | Weight: | 15T |
---|---|---|---|
Condition: | New | Dimension(l*w*h): | 7500*1700*1600Mm |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE/ISO9001 |
Warranty: | 12months | Control System: | PLC |
Processing Flow
Active hydraulic decoiling → guided material feeding → straightening → rolling → punching (machine halted) → hydraulic shearing→ material collecting

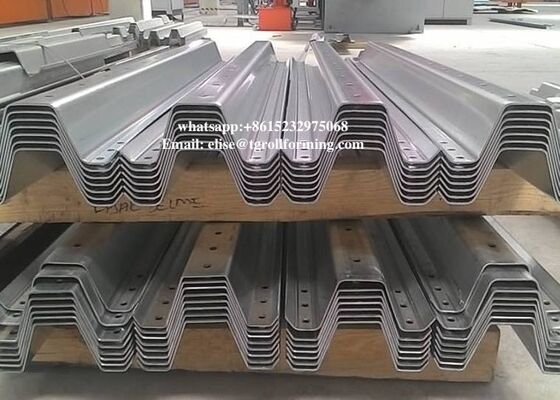

Finished Product
With a self-explanatory name, this silo stiffener roll forming machine is mainly designed to manufacture stiffeners that are used to reinforce silos to keep them safe. The stiffeners for small-diameter silos are interconnected through overlapping joint, while stiffeners large and high silos are interconnected through butt joint and then fastened with connecting plate.

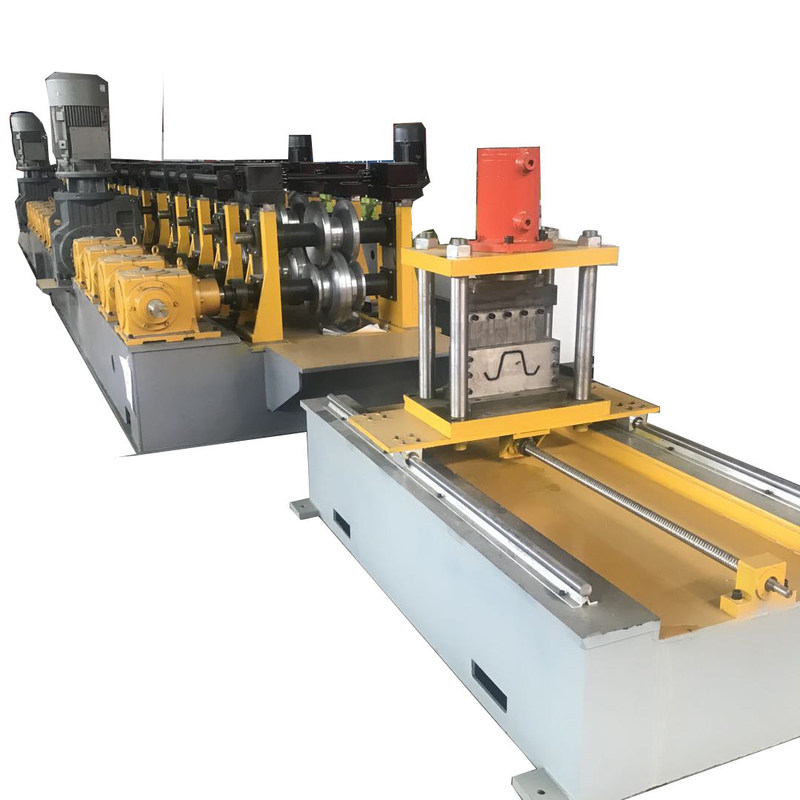

Composition
1. 5T hydraulic decoiler
2. Straightening machine
3. Shape forming machine
4. Punching machine
5. Curving machine
6. Hydraulic shear
7. Hydraulic station
8. PLC control cabinet
9. Stacker
