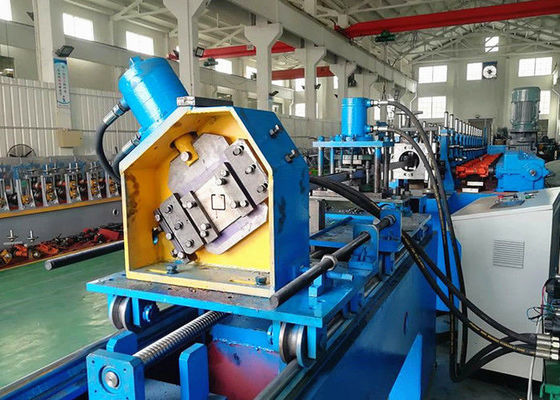

hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line

hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line

    • hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line
    • hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line
    • hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line
    • hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line
  • hydraulic automatic metal storage shelf Frame Bracing Roll Forming Line

    Product Details:

    Place of Origin: China
    Brand Name: Thomas
    Certification: CE,ISO
    Model Number: T-M8135

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 50000 USD - 80000 USD
    Packaging Details: Standard packing or according to customers requirement
    Delivery Time: 50 working days
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50HZ 3phase
    Condition: New Weight: 10T
    Name: Shelf Storage Deck Panel Roll Forming Control System: PLC
    Use: Storage System Tile Type: Steel
    Dimension(l*w*h): 5000*800*1200Mm





    Machine Details:
    1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
    2. Working Speed: 12-15 meters / min
    3. Forming Steps: 19 stations, drive by gear boxes
    4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
    5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
    6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
    7. Main Power with reducer: 22KW WH Chinese Famous
    8. Cutting: Hydraulic Cutting Cr12mov
    9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
    10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
    11. The whole machine is controlled by industry computer-PLC.
    12 PLC--Panasonic, Japan English and Chinese Language
    13 Touch Screen--Panasonic Japan
    14 Encoder--Omron, Japan
